Don’t let a faulty harmonic balancer ruin your ride. Learn how to replace it yourself with our comprehensive guide.
A faulty harmonic balancer can cause severe issues in your C5 Corvette. If you’re experiencing vibrations, strange noises, or oil leaks, it might be time to replace your harmonic balancer. While it might seem daunting, you can do it yourself with the right tools and knowledge. This step-by-step guide will walk you through replacing your C5 Corvette harmonic balancer.
How to Replace a C5 Corvette Harmonic Balancer
Quick Summary:
This is a detailed step-by-step guide on replacing a faulty harmonic balancer on your C5 Corvette.
It includes helpful tips, a list of tools needed, and instructions on removing the old harmonic balancer and installing the new one.
Helpful Tips:
1. Invest in good quality jackin pucks to safely lift your car.
2. Take out the bolt that holds the power-steering neck to the power-steering shaft when pulling out the rack.
3. Keep the bolt on the old harmonic balancer before trying to get it off.
4. Heat the inner shank of the harmonic balancer before installation to make it slide in easier.
5. Double-check the power steering lines to ensure they’re correctly installed.
Removing the Old Harmonic Balancer
To remove the old harmonic balancer, you’ll need to remove the serpentine belt, the power steering rack, and the sway bar. Then, you can start working on getting the old harmonic balancer off.
1. Remove the serpentine belt and serpentine tensioner pulley.
2. Remove the power-steering rack by undoing the lines carefully after clipping a little wire.
3. Loosen up the engine cradle bolts about an inch and pry the power-steering rack enough to get it out.
4. Take off the sway bar to give more room and inspect it for wear and tear.
5. Use a harmonic balancer puller to remove the old harmonic balancer.
Installing the New Harmonic Balancer
Installing the new harmonic balancer requires some preparation, including heating up the inner shank and applying anti-seize. Then, you can slide the harmonic balancer into place and secure it.
1. Heat the inner shank of the new harmonic balancer and apply anti-seize.
2. Slide the harmonic balancer into place, being sure to put a little grease on the new front main oil seal.
3. Tighten down the harmonic balancer and slide the power-steering rack back into place.
4. Bolt on the shaft and double-check the power steering lines.
5. Put the serpentine belt back on and secure the sway bar.
Testing Your New Harmonic Balancer
After installing your new harmonic balancer, testing it out before hitting the road is essential.
1. Start the car and check for any leaks or strange noises.
2. Take it for a test drive and listen for vibrations or odd sounds.
3. Double-check all the bolts and connections to ensure everything is secure.
Parts :
Looking for replacement parts for your C5 Corvette? Check the selection of high-quality harmonic balancers below and other Corvette parts.

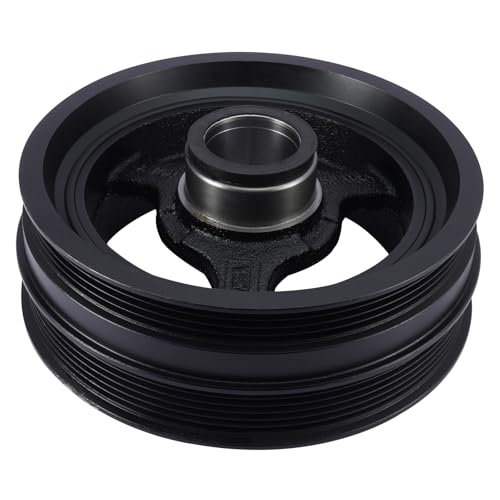

- 【Vehicle Fitment】Compatible with Chevrolet Corvette 1997-2004 2008; Compatible with Cadillac CTS 2004-2005; Compatible with Pontiac G8 2009
- 【Reference Number】594-115,102120, DA-3508, PB1117-N, PB1117N, 12553474, 12560115, 12601402, 12635649
- 【Specification】Drive Belt Type: Serpentine; Mounting Hole Quantity: 1; Bolt and Washer Included; Yes
- 【Note】Fit Corvette 2001-2004 with VIN S/1997-2004 with VIN G
- 【Buy with Confidence】1 Year Unlimited-mileage Quality Guarantee---We extremely value your satisfaction and strive to provide you good shopping experience. Any further question, please feel free to contact us at any time.

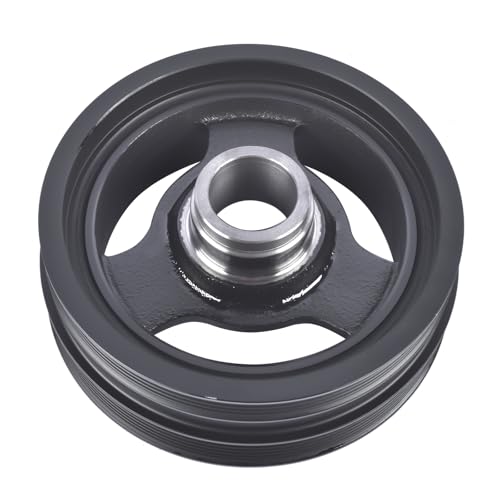

- Ideal replacement - this harmonic balancer assembly exactly matches the fit and function of the original harmonic balancer for a direct replacement
- Durable construction - stringent specifications and careful construction help ensure longevity
- Thoroughly tested - this harmonic balancer has undergone dimensional verification, material validation and functional testing
- Trustworthy quality - backed by a team of product experts in the United States and more than a century of automotive experience
- Ensure fit - to make sure this part fits your exact vehicle, input your make, model and trim level into the garage tool

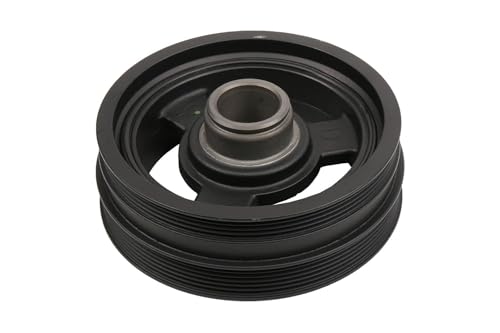

- Counterweight Balance : Neutral, No Counterweight
- Power Bond Balancers Use A Spheroidal Graphite Iron Casting Which Is Considered Near-Steel Strength Material
- Package Dimensions :10.2 Cm L X21.8 Cm W X23.4 Cm H
- Product Type :Auto Part
Conclusion:
Replacing a harmonic balancer might seem daunting, but with the right tools and knowledge, it’s a task you can do yourself. Following our step-by-step guide and helpful tips, you can get your C5 Corvette running smoothly again. Don’t let a faulty harmonic balancer ruin your ride – take matters into your own hands and get your car back on the road.
